ME_B06   2 IN  8 OUTPUT

The ME_B06 device is equipped with two inputs and 8 outputs, inputs and power supply are optically isolated, in order to guarantee the safety of all devices connected to the buffer.
The device allows you to select which of the two inputs to send out via an external switch (which can be installed anywhere on the dashboard at the Captain's discretion) connected to the dedicated connector.
Another operating mode is to divide the outputs (4 + 4 OUT):
  - IN 1 OUT (1-4)

  - IN 2 OUT (5-8)
In 4 + 4 OUT mode the Select IN must remain Open.


•     Compatible with all NMEA 0183 versions with no configuration requirements

•      Amplification of weak input signals

•     It works automatically with any serial protocol, including NMEA 0183

•     It works automatically at any baud rate up to 115200 Baud

•     Galvanic isolation at the input meets the latest NMEA 0183 specifications

•     Outputs compatible with RS422 and RS232 devices

•      LED indicators for power and data entry

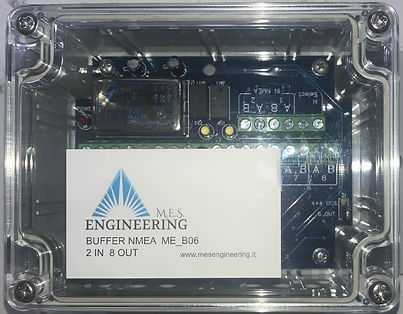

ME_B06 is available in two containers, Gewiss or RND (with transparent lid), both boxes are equipped with fixing wings.
